Your current location：Home > Products > FLOATED LACQUER SANDER

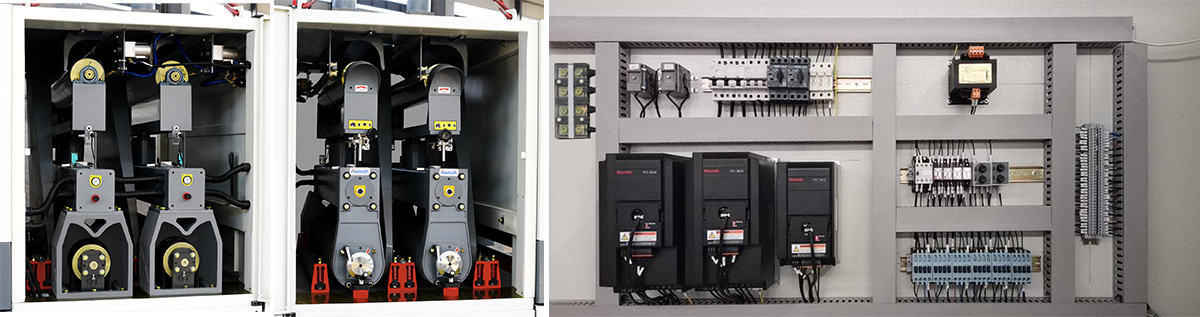

Large diameter eccentric spiral rubber calibrating rollers are used in all sanding heads, and have good sanding effect.
Floated structure is adopted to match with UV painting line.
High precision magnetic-grid positioning system ensures accurate height position and machine control.
| 技術參數(shù) | Technical Specification | SFR- R1300V | SFR- R1000V | SFR- R700V |
|---|---|---|---|---|
| 最大加工寬度 | Max working width | 1300mm | 1000mm | 700mm |
| 最短加工長度 | Min working length | 380mm | 285mm | 285mm |
| 加工厚度 | Working thinkness | 2- 100mm | 2- 100mm | 2- 100mm |
| 輸送速度（變頻調(diào)速） | Feeding speed | 5- 26m/min | 5-30m/min | 5-30m/min |
| 砂帶尺寸 | Abrasave belt size | 1330×2620mm | 1030×2100mm | 730×2100mm |
| 總功率 | Total Moter power | 27.52KW | 22.85KW | 17.83KW |
| 工作壓力 | Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 壓縮空氣消耗量 | Air consumption | 17m3 /h | 9m3 /h | 7m3 /h |
| 吸塵量 | Volume of dust collection device | 8500m 3 /h | 4600m 3 /h | 4600m 3 /h |
| 外形尺寸 | Overall dimensions | 2112×2634×2310mm | 1715×2000×2125mm | 1415×2000×2125mm |
| 重量 | Net weight | 3900kg | 3000kg | 2500kg |
