Your current location：Home > Products > TWO HEADS BELT SANDER

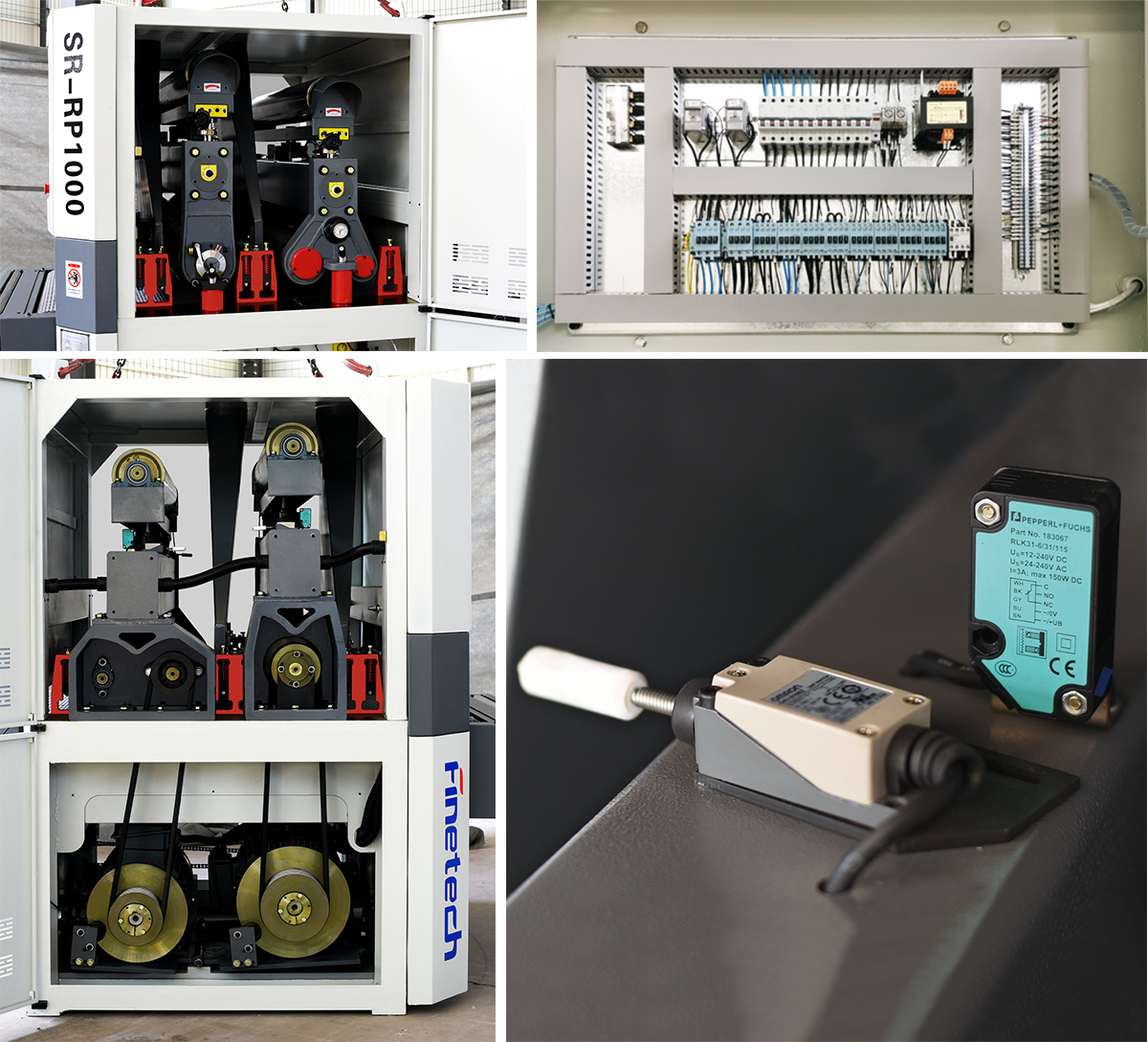

Beam base and hanging plate are precision castings, good stability and low noise.
Variable frequency helical-spiral bevel gear reducer for feeding, runs smoothly, low noise and durable.
Tapered sleeve pulley, compact structure and convenient installation.
| 技術參數(shù) | Technical Specification | SR- RP1000 | SR- RP700 | SR- R700 |
|---|---|---|---|---|
| 最大加工寬度 | Max working width | 1000mm | 700mm | 700mm |
| 最短加工長度 | Min working length | 480mm | 480mm | 305mm |
| 加工厚度 | Working thinkness | 2-160mm | 2-160mm | 2-160mm |
| 輸送速度（變頻調速） | Feeding speed | 5-30m/min | 5-30m/min | 5-30m/min |
| 砂帶尺寸 | Abrasave belt size | 1030×2000mm | 730×1900mm | 730×1900mm |
| 總功率 | Total Moter power | 39.94KW | 28.24KW | 28.24KW |
| 工作壓力 | Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 壓縮空氣消耗量 | Air consumption | 12m3 /h | 9m3 /h | 9m3 /h |
| 吸塵量 | Volume of dust collection device | 9800m 3 /h | 8500m 3 /h | 8500m 3 /h |
| 外形尺寸 | Overall dimensions | 1663×2164×1980mm | 1363×2164×1980mm | 1363×2164×1980mm |
| 重量 | Net weight | 2600kg | 2300kg | 2300kg |
